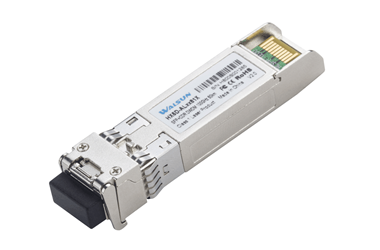

10G SFP+ DWDM

Egone 10G SFP+ DWDM series optical modules include 10G SFP+ DWDM 40KM、10G SFP+ DWDM 80KM and other products. Provides commercial temperature, extended temperature, and industrial grade temperature for customers to choose from.The product uses the LC interface, compatible with IEEE802.3ae and SFF-8472 standards, with low power consumption, small volume, high rate. It is mainly used in data center interconnection, SONET/SDH, metropolitan area network, 4G LET wireless network, transmission network, high-speed peer to peer connection, optical fiber channel and so on. 10G SFP+ DWDM transcivers modules can be adapted to HUAWEI、H3C、CISCO、 Alcatel-lucent、 Juniper、HP and other devices.

BUY

P/N	Product Description	Date Rate	Reach	Wavelength	Transmitter	Receiver	Power Consumption	Temperature (deg C)	Date Sheet
HXSH-ALxx41I	50GHz DWDM SFP+	10Gb/s	40km	CH17~CH61	EML	PIN	<1.8W	-40~+85°C
HXSH-ALxx41C	50GHz DWDM SFP+	10Gb/s	40km	CH17~CH61	EML	PIN	<1.8W	0~+70°C
HXSH-ALxx81I	50GHz DWDM SFP+	10Gb/s	80km	CH17~CH61	EML	APD	<1.8W	-40~+85°C
HXSH-ALxx81C	50GHz DWDM SFP+	10Gb/s	80km	CH17~CH61	EML	APD	<1.8W	0~+70°C
HXSD-ALxx41I	100GHz DWDM SFP+	10Gb/s	40km	CH17~CH61	EML	PIN	<1.5W	-40~+85°C
HXSD-ALxx41C	100GHz DWDM SFP+	10Gb/s	40km	CH17~CH61	EML	PIN	<1.5W	0~+70°C
HXSD-ALxx81I	100GHz DWDM SFP+	10Gb/s	80km	CH17~CH61	EML	APD	<1.5W	-40~+85°C
HXSD-ALxx81C	100GHz DWDM SFP+	10Gb/s	80km	CH17~CH61	EML	APD	<1.5W	0~+70°C
HXSD-ALxxW1C	100GHz DWDM SFP+	10Gb/s	100km	CH17~CH61	EML	APD	<1.5W	0~+70°C
