Current Location>>Products>>10G Transcivers>>10G SFP+ BIDI

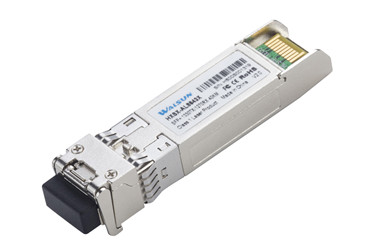

10G SFP+ BIDI

Egone SFP+ BIDI series transcivers modules include 10G SFP+ BIDI 10km、10G SFP+ BIDI 20km、10G SFP+ BIDI 40km、10G SFP+ BIDI 60km、10G SFP+ BIDI 80km and other products. Provides commercial temperature, extended temperature, and industrial grade temperature for customers to choose from. The product uses the LC interface, compatible with IEEE802.3ae and SFF-8472 standards, with low power consumption, small volume, high rate. It is mainly used in data center interconnection, SONET/SDH, metropolitan area network, 4G LET wireless network, transmission network, high-speed peer to peer connection, optical fiber channel and so on. 10G SFP+ BIDI transcivers modules can be adapted to HUAWEI、H3C、CISCO、Alcatel lucent、Juniper、HP and other devices.

BUY

P/N	Product Description	Date Rate	Reach	Wavelength	Transmitter	Receiver	Power Consumption	Temperature (deg C)	Date Sheet
HXSX-AL8613C	SFP+ BIDI	10Gb/s	10km	1330nm	DFB	PIN	<1.5W	0~+70°C
HXSX-AL6813C	SFP+ BIDI	10Gb/s	10km	1270nm	DFB	PIN	<1.5W	0~+70°C
HXSX-AL8643C	SFP+ BIDI	10Gb/s	40km	1330nm	EML	PIN	<1.5W	0~+70°C
HXSX-AL6843C	SFP+ BIDI	10Gb/s	40km	1270nm	DFB	PIN	<1.5W	0~+70°C
HXSX-AL8663C	SFP+ BIDI	10Gb/s	60km	1330nm	DFB	APD	<1.5W	0~+70°C
HXSX-AL6863C	SFP+ BIDI	10Gb/s	60km	1270nm	DFB	APD	<1.5W	0~+70°C
HXSX-AL5483I	SFP+ BIDI	10Gb/s	80km	1550nm	EML	APD	<1.5w	-40~+85°C
HXSX-AL4583I	SFP+ BIDI	10Gb/s	80km	1490nm	EML	APD	<1.5W	-40~+85°C
HXSX-AL5483C	SFP+ BIDI	10Gb/s	80km	1550nm	EML	APD	<1.5W	0~+70°C
HXSX-AL4583C	SFP+ BIDI	10Gb/s	80km	1490nm	EML	APD	<1.5W	0~+70°C
