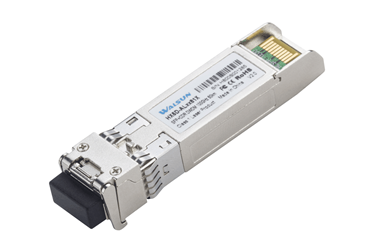

10G SFP+ CDR

Egone 10G SFP+ With CDR series transcivers module including 10G SFP+ LR CDR、10G SFP+ ER CDR、10G SFP+ ZR CDR、10G SFP+ CWDM CDR、10G SFP+ DWDM CDR and other products. Provides business class temperature, extended temperature, industrial temperature, and CDR function for customers to choose from. 10G SFP+ CDR transcicers use LC interface, compatible with IEEE802.3ae and SFF-8472 standards, with low power consumption, small volume, high rate. It is mainly used in data center interconnection, SONET/SDH, metropolitan area network, 4G LET wireless network, transmission network, high-speed peer to peer connection, optical fiber channel and so on. 10G SFP+ CDR transcicers modules can be adapted to HUAWEI、H3C、CISCO、Alcatel-lucent、Juniper、HP and other devices.

BUY

P/N	Product Description	Date Rate	Reach	Wavelength	Transmitter	Receiver	Power Consumption	Temperature (deg C)	Date Sheet
HX5H-ALxx41I	50GHz DWDM With CDR	10Gb/s	40km	CH17~CH61	EML	PIN	<1.8W	-40~+85°C
HX5H-ALxx41C	50GHz DWDM With CDR	10Gb/s	40km	CH17~ch61	EML	PIN	<1.8W	0~+70°C
HX5H-ALxx81I	50GHz DWDM With CDR	10Gb/s	80km	CH17~CH61	EML	APD	<1.8W	-40~+85°C
HX5H-ALxx81C	50GHz DWDM With CDR	10Gb/s	80km	CH17~CH61	EML	APD	<1.8W	0~+70°C
HX5D-ALxx41I	100GHz DWDM With CDR	10Gb/s	40km	CH17~CH61	EML	PIN	<1.8W	-40~+85°C
HX5D-ALxx41C	100GHz DWDM With CDR	10Gb/s	40km	CH17~CH61	EML	PIN	<1.8W	0~+70°C
HX5D-ALxx81I	100GHz DWDM With CDR	10Gb/s	80km	CH17~CH61	EML	APD	<1.8W	-40~+85°C
HX5D-ALxx81C	100GHz DWDM With CDR	10Gb/s	80km	CH17~CH61	EML	APD	<1.8W	0~+70°C
HX5C-ALxx41I	CWDM SFP+ With CDR	10Gb/s	40km	1470~1610	EML	PIN	<1.8W	-40~+85°C
HX5C-ALxx41C	CWDM SFP+ With CDR	10Gb/s	40km	1470~1610	EML	PIN	<1.8w	0~+70°C
HX5C-ALxx81I	CWDM SFP+ With CDR	10Gb/s	80km	1470~1610	EML	APD	<1.8W	-40~+85°C
HX5C-ALxx81C	CWDM SFP+ With CDR	10Gb/s	80km	1470~1610	EML	APD	<1.8W	0~+70°C
HX5X-AL541I	SFP+ With CDR	10Gb/s	40km	1550nm	EML	PIN	<1.8W	-40~+85°C
HX5X-AL541C	SFP+ With CDR	10Gb/s	40km	1550nm	EML	PIN	<1.8W	0~+70°C
HX5X-AL581I	SFP+ With CDR	10Gb/s	80km	1550nm	EML	APD	<1.8W	-40~+85°C
HX5X-AL581C	SFP+ With CDR	10Gb/s	80km	1550nm	EML	APD	<1.8W	0~+70°C
HX5X-AL5W1I	SFP+ With CDR	10Gb/s	100km	1550nm	EML	APD	<1.8W	-40~+85°C
HX5X-AL5W1C	SFP+ With CDR	10Gb/s	100km	1550nm	EML	APD	<1.8W	0~+70°C
